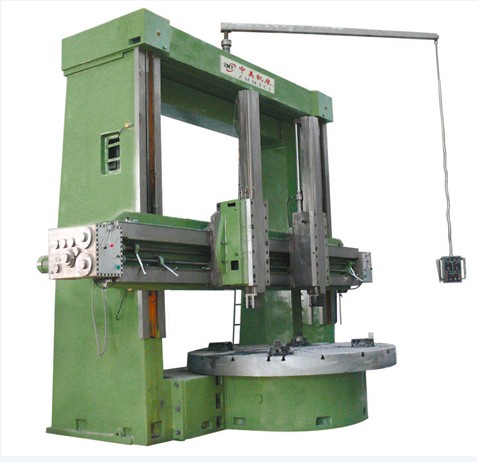

中美-雙柱立式車床C5225 31 40 50 63系列
|
雙柱立式車床技術參數 |
||||||||
|
序號 No. |
參數內容 |
單位 Unit |
機 床 型 號 Machine tool type |
|||||
| C5225 | C5231 | C5240 | C5250 | C5263 | ||||
| 1 |
立刀架最大切削直徑 The max.cutting diameter of longitudinal tool rest |
mm | 2500 | 3150 | 4000 | 5000 | 6300 | |
| 2 |
工作臺直徑 Diameter of worktable |
mm | 2250 | 2830 | 2830 | 4500 | 4500 | |
| 3 |
工件最大重量 The max.weight of workpiece |
t | 10 | 10 | 10 | 25 | 32 | |
| 4 |
工件最大高度 The max.height of workpiece |
mm | 1600 | 1600 | 2000 | 2000 | 3150 | |
| 5 |
工作臺轉速范圍 The range of workpiece's revolution speed |
r/min | 2-63 | 2-63 | 2-63 | 1.25-40 | 0.35-25 | |
| 6 | 工作臺最大扭矩 max.torque of table | N.m | 63000 | 63000 | 63001 | 63002 | 63003 | |
| 7 |
工作臺轉速級數 The step of workpiece's revolution speed |
級 | 16 | 16 | 16 | 16 | 16 | |
| 8 |
總切削力 Total cutting force |
N. | 63000 | 63001 | 63002 | 63003 | 63004 | |
| 9 |
立刀架水平行程 The horizontal travel of longitudinal tool rest |
mm | 1400 | 1735 | 2150 | 2765 | 3415 | |
| 10 |
立刀架垂直行程 The vertical travel of longitudinal tool rest |
mm | 1000 | 1000 | 1250 | 1250 | 1600 | |
| 11 |
左右刀架極限搬度 Total cutting force |
度 | 30 | 30 | 30 | 30 | 30 | |
| 12 |
刀架進給量范圍 Left Feed range of veretical tool head |
左 刀 架 Right tool head |
mm/min | 0.24-145 | 0.24-145 | 0.24-145 | 0.24-145 | 0.24-145 |
|
右 刀 架 Left tool head |
mm/min | 0.24-145 | 0.24-145 | 0.24-145 | 0.24-145 | 0.24-145 | ||
| 13 |
橫梁行程 Travel of cross beam |
mm | 1250 | 1250 | 1650 | 1650 | 2150 | |
| 14 |
主電機功率 The power of main motor |
kw | 55 | 55 | 55 | 75 | 75 | |
| 15 |
機床重量（約） Weight of machine tool(approximate) |
kg | 33000 | 36000 | 50000 | 70000 | 90000 | |
| 16 |
機床外形尺寸(長×寬×高) Dimension of machine tool (L×W×H) |
mm |
5180× 4870×
| |||||
